Hauv nruab nrab - Flatter dua Round, Siab dua Countersunk

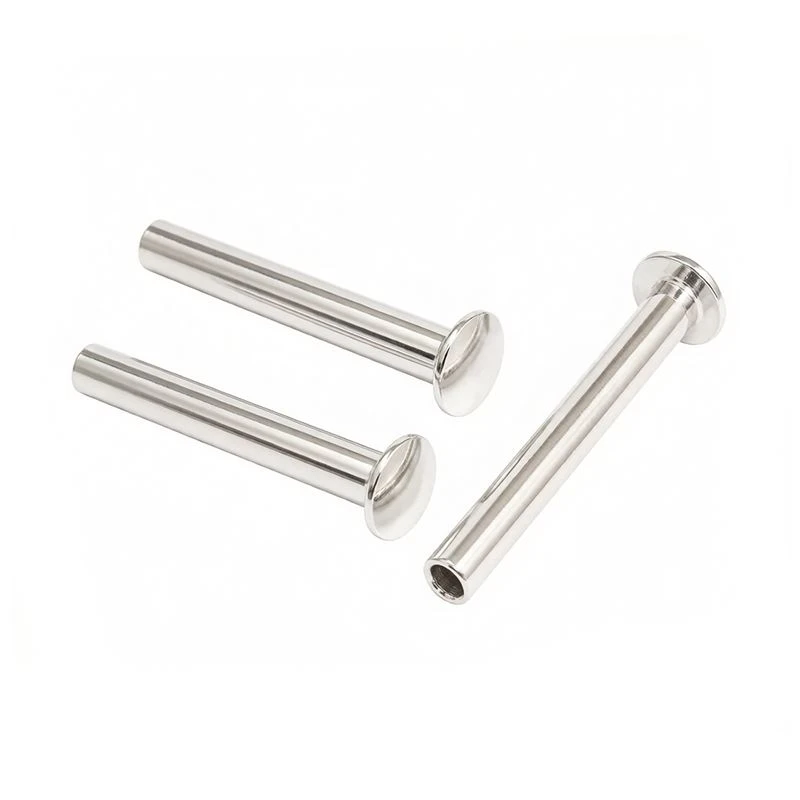

Lub Semi- countersunk Solid Rivet muaj lub taub hau zoo uas tsis tiaj tus thiab tsis puv puv. Tom qab riveting, lub taub hau sticks me ntsis, tab sis tsawg tshaj li ib puag ncig lub taub hau. Nws ua rau koj muaj qhov sib npaug zoo ntawm kev saib du thiab tuav ruaj khov. Peb lub Hoobkas muaj 35 lub tshuab: 13 me me, 1 nruab nrab, 17 nruab nrab-loj, 1 loj, ntxiv rau ntau qhov chaw nres tsheb. Peb tuaj yeem ua ntau txoj kab uas hla. Cov lus hauv qab no qhia tsib qhov sib txawv ntawm qhov ntau thiab tsawg.
|
Qhov siab d (mm) |
Lub taub hau dk max (mm) |
Lub taub hau qhov siab k (mm) |
Arc qhov siab f (mm) |
Length ntau yam (mm) |
|
1 |
2.03 |
0.5 |
0.3 |
2–8 |
|
1.4 |
2.83 |
0.7 |
0.4 |
3–12 |
|
3 |
6.48 |
1.4 |
0.8 |
6–20 |
|
8 |
17.0 |
4.0 |
2.2 |
16–50 |
|
16 |
32.4 |
10.0 |
4.5 |
40–100 |
Khoom siv: carbon steel (lwm cov ntaub ntawv muaj nyob rau hauv kev thov)
Ib ntawm Ib Pab - Xa koj daim duab rau peb
Peb muab kev pabcuam ua ntej muag khoom dab tsi? Peb muab koj tus kws tshaj lij kev lag luam txawv teb chaws rau koj. Koj qhia peb cov khoom, qhov loj me, thiab daim ntawv thov. Peb pab koj xaiv qhov zoo tshaj plaws Semi- countersunk Solid Rivet. Peb tsis muag koj yam koj tsis xav tau. Peb kuj pab koj xam tus nqi rau koj kom muaj nuj nqis. Koj puas tuaj yeem ua los ntawm kuv daim duab? Yog lawm. Xa koj daim duab. Peb saib thiab qhia koj yog tias peb tuaj yeem ua tau. Tom qab 40 xyoo, peb tuaj yeem ua ntau qhov ntau thiab tsawg yam tsis muaj pwm tshiab. Yog tias xav tau pwm tshiab, peb qhia koj lub sijhawm thiab tus nqi. Tsis zais.
Rau Tsheb Sab Hauv thiab Cov Khoom Siv Hauv Tsev - Peb Rov Qab
Lub Semi- countersunk Solid Rivet ua haujlwm zoo qhov koj xav tau ob qho tib si zoo thiab muaj zog. Piv txwv li yog lub tsheb sab hauv, maus taus npog, cov khoom siv hauv tsev, thiab cov rooj tog zaum. Nws yog ib qho yooj yim rau rivet tshaj lub taub hau tag nrho countersunk, thiab flatter tshaj lub taub hau puag ncig. Kev xaiv nruab nrab zoo. Peb cov txheej txheem tom qab muag yog dab tsi? Ua ntej muag: ib tug ntawm ib tug tham. Thaum lub sij hawm tsim khoom: kev tswj nruj thiab kev hloov kho tshiab. Tom qab muag: tag nrho kev taug qab thiab cov lus teb ceev ceev. Peb cog lus tias tsis muaj kev txhawj xeeb. Peb muab 3 mus rau 6 lub hlis warranty. Yog tias qhov loj me tsis raug lossis tsis zoo, tiv tauj peb. Peb tsis hla cov nyiaj npib. Xaiv peb ib nrab countersunk rivet - koj yuav muaj kev thaj yeeb ntawm lub siab.
